Welders & Workstations

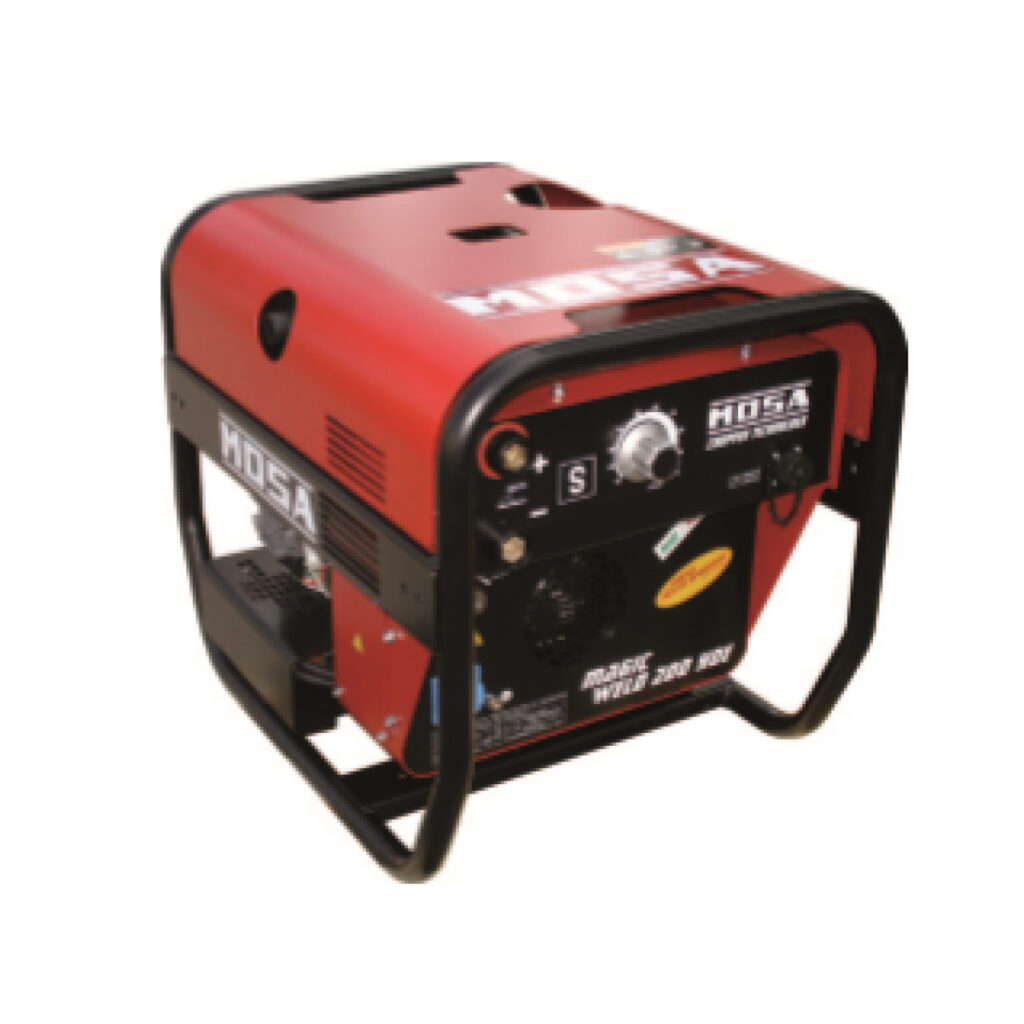

Mosa Magic Weld 200
POA
In Stock
SKU: MGW200
Mosa Magic Weld 200 – The engine driven welder is arranged as a single block composed of the engine and stainless steel box structure where the front is the cover. All electrical components of the machine (except for the reactor which is located on the base under the engine) are located inside, which are: an alternator with permanent magnets, a high frequency chopper bridge, a control board for the welding current, an inverter which generates alternating current of 50Hz with 230 or 110 volts and an electromagnet for the tick-over.
Main features of Mosa Magic Weld 200:
• D.C. welding current 200A al 60%
• Continuous regulation of the welding current with “Chopper System”
• Suitable for basic and rutile electrodes. A reactance for cellulose electrodes is available as an option
• Antistick function (small arc force)
• Continuous auxiliary output 50Hz to 230V/3kVA to 110V/2kVA (50 Hz/60Hz)
• Engine accelerator at minimum/maximum at load take up
• Weight 61 Kg
• Acoustic Power 74 dBA to 7m
Specifications Sheets
Express Shipping: Emergency? Ask about immediate dispatch.
Finance Calculator
Product Description - Mosa - MagicWeld 200
Electrical components of the machine:
- Permanent magnet alternator: the alternator has 2 galvanically separated windings, one for welding and the other for the auxiliary output.
- Tick-over solenoid: an electromagnet in absence of load. When the load is present, welding or auxiliary output, the electromagnet is not supplied any more and the engine speed goes to the maximum (4000 rpm rated open circuit).
- High frequency chopper diode bridge: it regulates the welding current using the “Chopper System”, which chops the welding D.C. current at high frequency.
- Hall sensor: it measures with high precision the welding current and it’s completely isolated from the welding circuit.
- Serie’s reactance
- Welding current adjustment board: a board controls the welding process and supplies the engine accelerator control electromagnet.
- Auxiliary in alternating current. An inverter generates alternating current 110/230V 50Hz with continuous current (duty cycle 100%) of 1.8 kVA/ 2.5kVA
Features:
• Arc welding source in D.C. welding
• Welds any type of electrode, including cellulosic
• High frequency control of welding current and voltage
• Single-Phase, 50Hz aux current, inverter generated
• Engine shut-down (oil alert)
• MOSA Power optimiser (patent pending)
• Auto Idle
• Protective frame
• Portable
• Meets EC directives
Product Specifications
Model
Magic Weld 200
Engine
Honda GX270
Engine Speed
3600 rpm
Fuel Tank Capacity
5.3 litres
Fuel
Petrol
Run Time
3.5 hrs @ 60% welding
Dimensions
63 x 49 x 54 cm
Weight
61 kg
